Microsoft Integration Architecture for Large Enterprises: A Reference Guide for Regulated Sectors

Quick Answer: Microsoft Integration Architecture for Large Enterprises

Microsoft integration architecture for large enterprises is the reference design, governance framework, and target-state pattern set determining whether Microsoft platform integrations meet regulated-enterprise audit, scale, and accountability requirements. An engagement produces four artifacts: reference architecture documentation, an integration governance framework, target-state design, and a prioritized modernization roadmap.

Key Takeaways for Microsoft Integration Architecture Selection

i3solutions has delivered Microsoft integration architectures for regulated enterprises including an aerospace and defense manufacturer, a financial services firm, and a national healthcare system.

Microsoft partner since 1997, with nearly 30 years of Mic

rosoft enterprise delivery and pattern recognition.

600+ completed Microsoft platform implementations anchor architecture decisions in proven patterns.

Our Enterprise Delivery Assurance model is built to land solutions on-time, in-scope, and in-production.

Three Microsoft Integration Architecture patterns covered: API-first layered, event-driven and message-based, and hybrid integration Microsoft architecture for legacy connectivity.

Senior, 100% US-based integration architects deliver every engagement; no offshore handoff, no junior staffing.

Compliance framework anchoring at named control family depth: NIST 800-171 Rev 3, HIPAA Security Rule, SOC 2 CC8, DFARS 252.204-7012.

By Justin Bowen | Published 2026-05-22

Microsoft integration architecture is the governed design connecting enterprise systems at scale, not the Azure service list it runs on. Azure API Management, Logic Apps and Functions, Service Bus and Event Grid, and Data Factory with Synapse Link are the core building blocks; governance is what survives a CIO’s audit.

This guide is for the CIO or VP of IT evaluating partners to design that architecture. Integration failures in regulated environments are architecture problems first, governance problems second, and implementation-labor problems only third. A partner whose proposal begins with sprint plans and developer headcounts has skipped the two questions that determine whether the architecture survives audit and clears the bar for executive accountability.

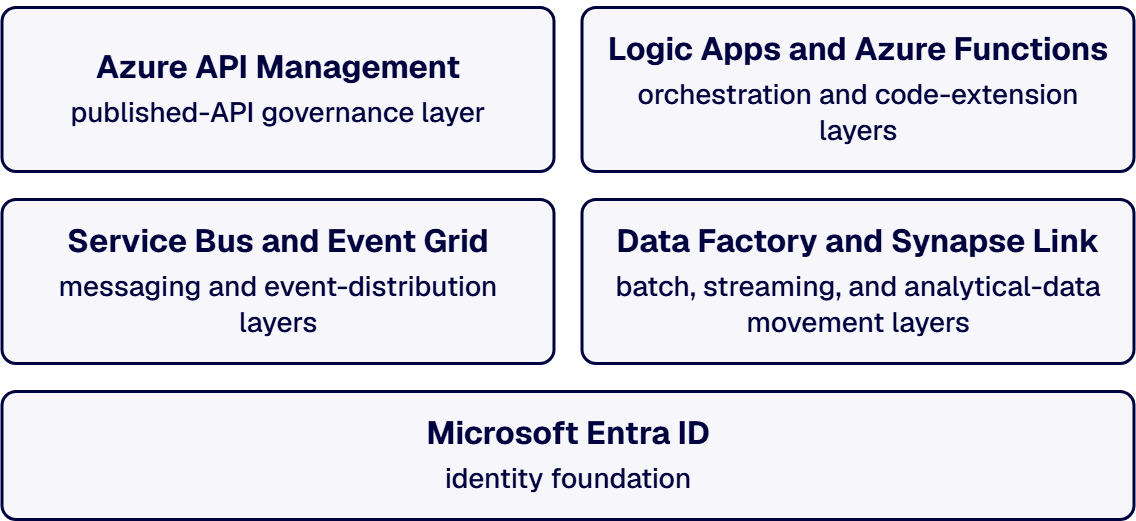

A Microsoft Integration Architecture is built on five named Azure Integration Services components plus an identity foundation. Microsoft’s canonical reference is the Azure Integration Services overview in the Azure Architecture Center. Each component answers a specific governance question, not just a technical capability question. The architecture decision is which components to combine, in what topology, with what governance controls applied at each layer.

Azure API Management Architecture

Azure API Management is the integration architecture’s published-API governance layer. The governance question: who can consume which integration surface, under what rate limits, with what authentication, with what audit-trail retention. Enterprise decisions include developer portal access controls, API versioning lifecycle, subscription-key and OAuth 2.0 policy combinations, regional deployment topology, and integration with on-premises gateways for hybrid scenarios. The architecture choice is which policies, products, and developer-portal configurations make the integration surface auditable and governable for the regulated-enterprise compliance posture.

Azure Logic Apps and Functions Architecture

Logic Apps and Azure Functions are the integration architecture’s orchestration and code-extension layers. The governance question: how is integration logic versioned, deployed, monitored, and rolled back when production behavior diverges from intent. Logic Apps decisions include Standard vs Consumption tier, run-history retention for audit, and Azure Key Vault integration. Functions decisions include Premium vs Consumption hosting, durable orchestration patterns, and deployment-slot strategy for zero-downtime change control.

Azure Service Bus and Event Grid Architecture

Service Bus and Event Grid are the integration architecture’s messaging and event-distribution layers. The governance question: where do messages live when consumers are unavailable, how is dead-letter handled, what is the audit-trail position of a message that traversed three integration hops. Service Bus decisions include queue vs topic-subscription topology, message TTL and lock-duration tuning, and namespace separation by data-classification tier. Event Grid decisions include event schema versioning, subscription filtering policy, and dead-letter destination after retry exhaustion.

Azure Data Factory and Synapse Link Architecture

Data Factory and Synapse Link are the integration architecture’s batch, streaming, and analytical-data movement layers. The governance question they answer: how is data lineage preserved across integration stages, how are batch and streaming pipelines reconciled when both target the same downstream system, and how is sensitive data masked in transit. Data Factory architecture decisions include self-hosted integration runtime topology for on-premises sources, managed-VNet vs public-endpoint configuration, and integration with Microsoft Purview for data lineage and classification.

Identity and Access Control via Microsoft Entra ID

Microsoft Entra ID (formerly Azure Active Directory) is the integration architecture’s identity foundation. The governance question: which service principal can call which integration surface, with what conditional access policy applied, with what audit logging captured. Entra ID decisions for integration include managed identity adoption, conditional access policy applied to service principals, and Privileged Identity Management for break-glass access to integration administration.

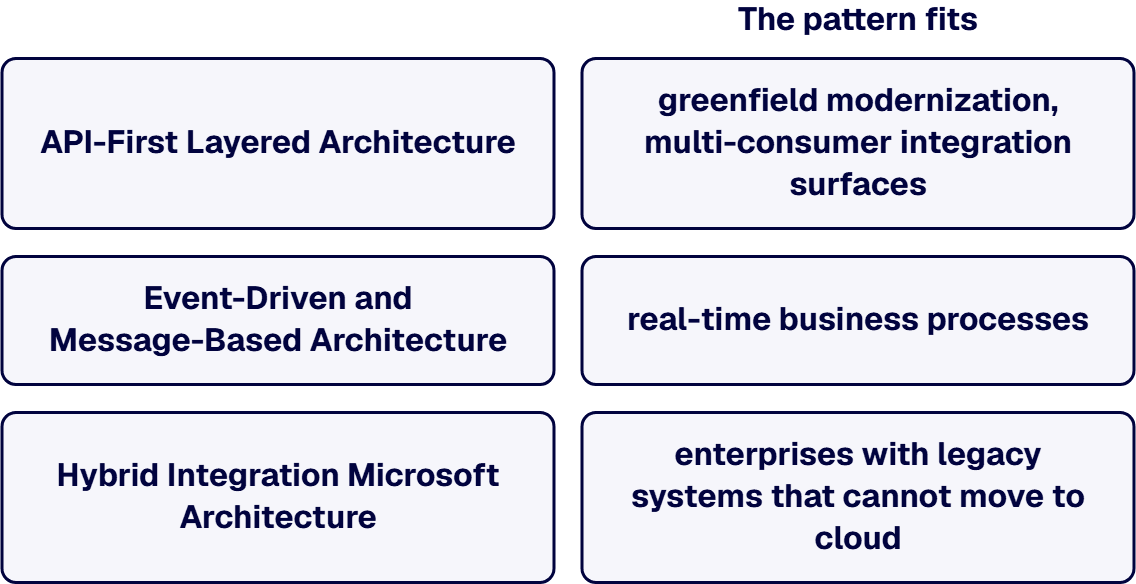

Three Microsoft Integration Architecture patterns dominate large-enterprise selection. The choice is not stylistic. Each pattern carries different governance, audit, and operational characteristics. The right pattern depends on legacy-system dependencies, data-sovereignty constraints, real-time-vs-batch business requirements, and the compliance framework anchoring the integration’s audit profile.

API-First Layered Architecture (Remediation for Brittle Point-to-Point Integration Drift)

The API-first layered pattern treats every system interaction as a published API contract. Integration logic sits behind API Management. Consumers (internal applications, partner systems, mobile clients) bind to the contract, not to the underlying system. The pattern fits greenfield modernization, multi-consumer integration surfaces, and enterprises where the integration team needs to evolve underlying systems without breaking consumers. Selection criteria: at least three consumer types per integration surface, willingness to maintain API contract versioning discipline, and a governance model that runs a developer portal with subscription approvals. The failure mode this pattern prevents: brittle point-to-point integrations that break every consumer when the underlying system changes.

Event-Driven and Message-Based Architecture (Remediation for Synchronous Cascade Failure Modes)

The event-driven pattern decouples producers from consumers via Service Bus topics, Event Grid event distribution, or Event Hubs streaming. Integration logic responds to events rather than polling. The pattern fits real-time business processes, legacy modernization where systems publish change events, and high-volume scenarios where synchronous request-response would not scale. Selection criteria: business processes where event ordering and exactly-once delivery semantics are tractable, willingness to operate dead-letter monitoring and replay tooling, and a governance model that handles event schema versioning across producers and consumers. The failure mode this pattern prevents: synchronous integration cascades that stall catastrophically when any downstream system becomes unavailable.

Hybrid Integration Microsoft Architecture (Remediation for Legacy System Constraint Gaps)

The hybrid pattern combines cloud-native Azure Integration Services with on-premises connectivity via self-hosted integration runtimes, on-premises data gateways, ExpressRoute private peering, or hybrid API Management gateways. The pattern fits enterprises with legacy systems that cannot move to cloud (regulatory data sovereignty, mainframe dependencies, ERP systems with multi-year modernization timelines). It is the canonical Microsoft iPaaS architecture pattern for enterprises where data residency rules require on-premises processing for certain data classifications. Selection criteria: named on-premises systems that must remain on-premises, willingness to operate hybrid networking, and a governance model that maintains parity across cloud and on-premises integration surfaces.

Hire i3solutions Microsoft Integration Specialists

If your enterprise needs a Microsoft Integration Architecture that survives audit, scales with the business, and clears the bar for executive accountability, i3solutions delivers senior, 100% US-based Microsoft integration architects who close that gap without a multi-month hiring cycle.

A Microsoft Integration Architecture engagement is artifact-led, not slide-led. Four named artifacts constitute the engagement deliverable inventory. Each is produced for board-defensible review, implementation-team handoff, and audit-trail continuity, under the i3solutions three-phase methodology (Phase 1 assessment, Phase 2 target-state design, Phase 3 prioritized roadmap construction).

Microsoft Integration Reference Architecture Document

The reference architecture document is the canonical engagement artifact. It captures component selection decisions across the five Azure Integration Services building blocks, topology diagrams at the system, data-flow, and security-boundary layers, decision rationale for pattern choice, and explicit traceability from compliance framework requirements to architecture controls. The document is the artifact that survives executive turnover, integrator changes, and audit cycles. Without a board-defensible reference architecture document, integration decisions are unrecoverable from tribal knowledge when the original architects leave.

Integration Governance Framework

The integration governance framework codifies who decides what, under what authority, with what audit-trail requirement. It includes API publication and lifecycle approval gates, integration change approval boards, environment-promotion controls, secret-management and identity-credential lifecycle policies, and compliance-framework mapping to integration governance controls. The framework determines whether the architecture remains governable post-handoff or degrades into ungoverned point-to-point integration as soon as the engagement ends.

Target-State Design and Transitional Architectures

The target-state design captures the integration architecture the enterprise is moving toward, typically on a 24-to-36-month horizon. Transitional architectures define the intermediate states the enterprise passes through during modernization (current state, target state, and two-to-four named intermediate states between them). Without explicit transitional architectures, modernization stalls in the first intermediate state and the enterprise inherits the worst of both topologies.

Prioritized Integration Modernization Roadmap

The roadmap sequences modernization waves against business outcomes, compliance deadlines, and operational risk reduction. Each wave is scoped to a defined value increment (a named business process modernized, a named compliance gap closed, a named operational risk eliminated). The roadmap is the artifact that anchors quarterly board updates and budget cycles. Roadmap decisions tie back to the reference architecture for technical defensibility, the governance framework for control coverage, and to the Microsoft Investment Optimization Consulting analysis for spend accountability. The failure mode this artifact prevents: stalled modernization that produces investment without business-outcome traceability.

Microsoft Integration Architecture decisions shift materially by regulated sector. Three sector-specific engagement patterns illustrate how compliance framework anchoring drives architecture choice.

Aerospace and Defense Sector

An aerospace and defense organization with CMMC 2.0 Level 2 obligations and DFARS 252.204-7012 covered defense information handling requirements scoped a Microsoft Integration Architecture engagement to modernize legacy supply-chain integration without losing audit-trail continuity for CUI movement. The engagement produced a hybrid integration Microsoft architecture with on-premises integration runtimes for CUI-classified data flows, Azure API Management with subscription-level audit logging for partner integration surfaces, and explicit traceability from DFARS 252.204-7012 paragraph (b)(2) requirements to integration audit controls.

Financial Services Sector

A regional financial services firm with SOC 2 Type II reporting obligations and an active CC8 change-management control assessment scoped a Microsoft Integration Architecture engagement to consolidate point-to-point trading-system integrations into an event-driven and message-based pattern. The engagement produced a Service Bus topic-subscription topology with named dead-letter destinations per subscription, change-management gates implemented as Azure DevOps approval policies, and SOC 2 CC8 evidence packages auto-generated from deployment pipeline audit logs.

Healthcare Sector

A mid-sized healthcare network with HIPAA Security Rule technical safeguards obligations under §164.312(e)(1) transmission security scoped a Microsoft Integration Architecture engagement to modernize ePHI movement across electronic health record systems, payer integrations, and patient-portal back-ends. The engagement produced an API-first layered architecture with API Management policies enforcing TLS 1.2 minimum and mutual TLS for partner-payer integrations, Logic Apps Standard tier with VNet integration for ePHI orchestration flows, and explicit mapping from §164.312(e)(2)(i) integrity controls to integration-layer audit logging.

A Microsoft Integration Architecture for regulated enterprises is only defensible at audit when its control coverage traces to named compliance framework requirements at the control-family or section-number level. Four frameworks dominate regulated-enterprise integration audit profiles.

NIST 800-171 Rev 3 Control Families Applied to Integration

NIST 800-171 Rev 3 System and Communications Protection (SC) control family (3.13.x) applies directly to integration architecture: SC 3.13.8 cryptographic protection of CUI in transit, SC 3.13.11 FIPS-validated cryptography, and SC 3.13.16 protection of CUI confidentiality at rest. Access Control family (3.5.x) applies to integration identity: AC 3.5.3 multifactor authentication for non-privileged accounts accessing CUI systems. A defensible Microsoft Integration Architecture maps each integration surface to the SC and AC controls it inherits or enforces, with the mapping captured in the governance framework artifact.

HIPAA Security Rule §164.312 Technical Safeguards

HIPAA Security Rule technical safeguards under 45 CFR §164.312 apply directly to integration architecture for healthcare ePHI: §164.312(a)(1) access control, §164.312(b) audit controls, §164.312(c)(1) integrity controls, and §164.312(e)(1) transmission security. The architecture decision is which integration components carry which safeguard: API Management policies for access control and transmission security, Logic Apps run-history retention for audit, and message-level integrity verification for §164.312(c)(1). Mapping each safeguard to an architecture control is a board-review and audit-defense baseline.

SOC 2 CC8 Change-Management Controls for Integration

SOC 2 Common Criteria CC8 (Change Management) applies to integration deployment pipelines, configuration changes, and integration-layer code releases. The architecture decision is which controls implement CC8: Azure DevOps approval gates for production deployment, environment-promotion controls for integration assets, and automated change-evidence packaging for SOC 2 Type II audit window assembly. CC8 compliance is an architecture-control implementation exercise that determines whether the integration layer survives the SOC 2 audit window without manual evidence assembly.

DFARS 252.204-7012 CUI Handling in Integration Pipelines

DFARS 252.204-7012 Safeguarding Covered Defense Information applies to defense contractor integration architectures where CUI traverses integration surfaces. The architecture decision is which integration components are in-scope for DFARS protection (any component that processes, stores, or transmits CUI) and which controls implement DFARS paragraph (b)(2) NIST 800-171 baseline protection. The mapping ties DFARS audit evidence to specific architecture controls, eliminating the post-hoc evidence-assembly burden that defeats most defense-contractor audit cycles.

Schedule a Microsoft Integration Architecture Consultation

A Microsoft Integration Architecture consultation with i3solutions begins with the architecture and governance questions the platform conversation typically skips. Schedule a consultation to discuss reference architecture, governance framework, and roadmap scope for your environment.

Three governance and design standards make the difference between an integration architecture that remains governable post-handoff and one that degrades into ungoverned point-to-point integration within twelve months. Microsoft’s Azure Well-Architected Framework provides the canonical pillar set against which integration governance anchors. The Integration Governance and Change Control for Microsoft-Based Systems guide covers the full framework; the three standards below are the operational discipline anchors.

Security, Identity, and Access Control Standards

Every integration surface inherits a security and identity posture. The governance standard codifies which surfaces use system-assigned managed identity vs user-assigned, which require Privileged Identity Management, conditional access policies applied to service principals, and key-rotation cadences for any surface using subscription keys or shared access signatures. The standard eliminates drift from individual administrator judgment to policy-enforced consistency.

Change Control and Versioning Strategies for Integration Assets

Integration assets (Logic Apps, Functions, API Management policies, Data Factory pipelines) require version control, environment promotion gates, and rollback procedures equivalent to the application code they integrate. The governance standard codifies branching strategy, deployment pipeline approval gates per environment tier, and rollback playbooks per integration surface.

Pattern Catalogs and Reference Implementations

A pattern catalog and reference implementation repository accelerates new integration delivery and preserves architecture consistency as the integration team grows. The governance standard codifies which patterns are sanctioned for which use cases, where the canonical reference implementations live, and how new patterns get sanctioned. Without a sanctioned pattern catalog, every new integration starts from a blank Logic App designer and the architecture decays into per-developer-style integration that the integration team cannot collectively operate.

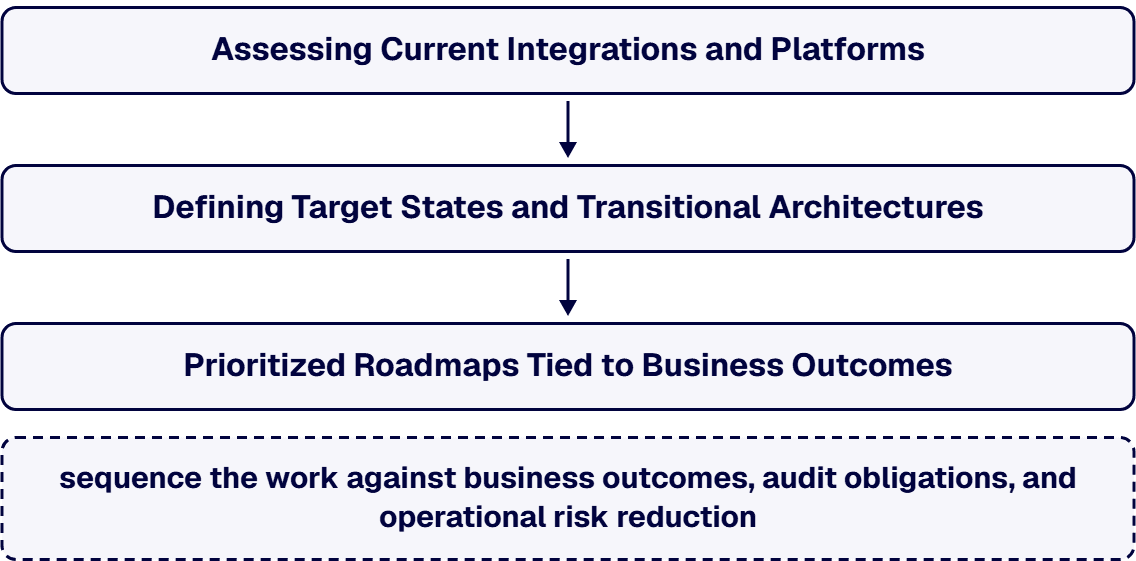

Microsoft Integration Architecture modernization is a multi-year program for most regulated enterprises. The three phases of the i3solutions engagement methodology (Phase 1 assessment, Phase 2 target-state design, Phase 3 prioritized roadmap construction) sequence the work against business outcomes, audit obligations, and operational risk reduction.

Phase 1: Assessing Current Integrations and Platforms

Phase 1 inventories the current integration estate: every integration surface, every consumer, every data flow, every compliance framework obligation that touches integration. The Phase 1 assessment captures component versions (where versions matter), throughput and reliability baselines, audit-trail coverage gaps, and a documented inventory of unsanctioned point-to-point integrations the enterprise did not realize existed. The assessment artifact is the baseline against which all subsequent phases measure progress.

Phase 2: Defining Target States and Transitional Architectures

Phase 2 translates Phase 1 assessment findings into a target-state design and the two-to-four named transitional architectures between current and target. Each transitional architecture is scoped to a 6-to-12-month execution window with named deliverables, named compliance posture changes, and named operational risk reductions. Phase 2 transitional architectures explicitly accept compromises (the intermediate state may carry transitional debt that the next phase retires) rather than pretending modernization happens in a single step.

Phase 3: Prioritized Roadmaps Tied to Business Outcomes

Phase 3 sequences the Phase 2 transitional architectures into a board-defensible roadmap. Each wave is tied to a named business outcome (revenue process unblocked, compliance deadline cleared, operational risk reduced, cost recovered). Wave sequencing factors compliance deadlines that cannot move, business milestones the integration supports, and operational risk windows where the current architecture is carrying acute exposure. The Phase 3 roadmap drives quarterly board updates and the budget cycles that fund modernization waves.

The Integration Architecture Handoff Test is the diagnostic that separates a partner who designs an architecture the enterprise can sustain from one who designs a deliverable the enterprise cannot operate post-handoff. What gets handed off at engagement close determines whether the architecture is governable or just documented. Five criteria define the test.

Reference Architecture Document Quality

The reference architecture document arrives as a board-defensible artifact, not a slide deck. It includes component selection rationale, topology diagrams at three layers (system, data flow, security boundary), explicit traceability from compliance framework requirements to architecture controls, and decision logs. A partner whose handoff is a deck without the named artifact has not delivered the architecture; they have delivered a presentation of it.

Governance Framework Operability

The governance framework arrives as an executable operating model, not a policy document. It includes approval gate definitions tied to specific Azure DevOps or ServiceNow workflows, named approval authority per change class, and integration with the enterprise’s existing change-management process.

Roadmap Defensibility at Board Review

The roadmap arrives in board-defensible form: named business outcomes per wave, named compliance obligations addressed, named operational risks reduced, named budget envelopes per wave. A roadmap that names technology milestones without business-outcome traceability cannot survive board scrutiny.

Senior Delivery Team Continuity

The senior architects who designed the architecture are available for post-handoff continuity, not rotated off to the next engagement. Continuity matters because architecture decisions surface operational consequences in the six-to-twelve months following handoff; the original architects are the only people with the decision-context to interpret those consequences correctly. Senior 100% US-based delivery teams sustain this continuity; offshore-handoff and rotation-heavy delivery models structurally cannot.

Compliance Framework Anchoring Depth

Compliance framework mapping arrives at named control-family and section-number depth (NIST 800-171 Rev 3 control IDs, HIPAA Security Rule paragraph references, SOC 2 CC8 sub-controls, DFARS clause references) rather than as generic compliance claims. Audit defensibility depends on the depth of the mapping; superficial claims fail audit scrutiny and force expensive remediation post-handoff.

i3solutions has been a

Microsoft partner since 1997. Over nearly 30 years

we have completed 600+ Microsoft platform implementations across regulated sectors including aerospace and defense, financial services, healthcare, and federal civilian. Our Microsoft Integration Architecture advisory practice serves CIO and VP IT buyers at large enterprises evaluating partners to design integration architectures that survive audit, scale with the business, and clear the bar for executive accountability.

For a CIO inheriting an integration estate they did not design, what matters is not another opinion but pattern recognition from someone who has done this 600 times. The borrowed expertise from 600+ prior implementations is what makes the i3solutions Microsoft Integration Architecture engagement methodology board-defensible: each architecture decision traces to patterns proven across regulated-enterprise engagements, not to first-time judgment under deadline pressure. That borrowed expertise is the career insurance the buyer is purchasing alongside the technical deliverable.

Our Enterprise Delivery Assurance model is designed to land integration architecture engagements on-time, in-scope, and in-production. Engagements are senior-staffed end-to-end; we do not rotate junior staff into architect roles, and we do not transfer engagements to offshore delivery teams. Every engagement is delivered by senior, 100% US-based Microsoft integration architects with at least fifteen years of Microsoft enterprise integration experience.

Reference engagements span aerospace and defense, financial services, and healthcare. We anchor engagements in proven patterns, named compliance framework mappings at the control-family or section-number level, and board-defensible artifacts that survive executive turnover and audit cycles.
